The Ultimate Customized Privacy Solution
Step into the future of interior design with custom smart film and smart glass. This innovative solution combines the flexibility of smart film with the durability and sleekness of smart glass, offering unparalleled personalization for modern interior design. Whether you are designing dynamic office partitions or upgrading home windows, our products provide instant, on-demand privacy and light control. It is easy to apply (film version) or install (glass version) and is designed for long-term use.
Is there any restriction on the custom size range of your glass smart film? For example, maximum/minimum length and width, please see the below size options.
|
Sunlight Smart Film Smart Glass Size |
|||
|
Adhesive glass smart film |
Thickness |
|
0.47mm |
|
Width |
Cut to Sheet |
100-1800mm |
|
|
Cut to Roll |
1000,1200,1500,1800mm |
||
|
Length |
Cut to Sheet |
100-50000mm |
|
|
Cut to Roll |
30 / 50meters |
||
|
Inner Diameter |
Roll Tube |
6 inches |
|
|
Laminated glass smart film |
Thickness |
|
0.38mm |
|
Width |
Cut to Sheet |
100-2100mm |
|
|
Cut to Roll |
1000,1200,1400,1500,1800,2000,2100mm |
||
|
Length |
Cut to Sheet |
100-50000mm |
|
|
Cut to Roll |
30 / 50meters |
||
|
Inner Diameter |
Roll Tube |
6 inches |
|
|
|
|||
|
Sunlight Smart Film Smart Glass Optical Parameter |
|||
|
Items |
States |
|
Test Methods/Standards |
|
Operating voltage |
ON |
60V |
Multimeter/ Voltage Regulator,WGW |
|
Power consumption |
ON |
≤ 5W/m² |
Multi-parameter electric measuring instrument |
|
Viewing angle |
ON |
≥ 160° |
Visual Inspection |
|
UV blocking rate |
OFF |
≥ 99% |
Optical transmittance tester |
|
Infrared blocking rate |
OFF |
≥ 60% |
|
|
Response time |
OFF→ON |
≤ 30 ms |
Liquid crystal parameter integrated tester |
|
ON→OFF |
≤ 200 ms |
||
|
Operating temperature |
|
-30°C ~ 50°C |
constant temperature and humidity |
|
Life-span |
|
100,000 hours |
GB18910.5-2008 |
|
Switching times |
|
≥2,000,000 times |
Self-made on/off tester |
|
Sunlight Smart Film Smart Glass Transparency / Haze |
||||||
|
Items |
Full light tester |
Parallel light tester |
||||
|
No.1 84% VLT |
ON/OFF |
Haze |
Full light transmittance |
b value |
45° light |
Parallel light |
|
Adhesive smart film for glass |
OFF |
94.5 |
78.0 |
6.62 |
/ |
/ |
|
ON |
4.53 |
84.0 |
4.56 |
58.0 |
82.0 |
|
|
Laminated smart film for glass |
OFF |
94.5 |
78.0 |
5.64 |
/ |
/ |
|
ON |
4.53 |
84.0 |
3.55 |
58.0 |
81.0 |
|
|
|
|
|
|
|
|
|
|
No.2 89% VLT |
ON/OFF |
Haze |
Full light transmittance |
b value |
45° light |
Parallel light |
|
Adhesive smart film for windows |
OFF |
94.5 |
78.0 |
6.95 |
/ |
/ |
|
ON |
4.53 |
89.0 |
4.71 |
58.0 |
86.0 |
|
|
Laminated smart film for windows |
OFF |
94.5 |
78.0 |
5.90 |
/ |
/ |
|
ON |
4.53 |
89.0 |
3.72 |
58.0 |
86.0 |
|
|
|
|
|
|
|
|
|
|
No.3 91% VLT |
ON/OFF |
Haze |
Full light transmittance |
b value |
45° light |
Parallel light |
|
Adhesive smart film window |
OFF |
94.5 |
85.0 |
7.57 |
/ |
/ |
|
ON |
3.00 |
91.0 |
5.29 |
60.0 |
88.0 |
|
|
Laminated smart film window |
OFF |
94.5 |
85.0 |
6.79 |
/ |
/ |
|
ON |
3.00 |
91.0 |
4.31 |
60.0 |
88.0 |
|
How much does smart window film cost?
The cost of smart window film varies greatly and depends on several key factors. As it is a customized product, there is no single fixed price. To obtain an accurate quote, we strongly recommend that you contact our sales team to understand the specific details of your project, including the required dimensions, whether you prefer film or glass, and the control method you prefer. Then we can provide a precise, customized price estimate.
How Smart Glass Film Work?

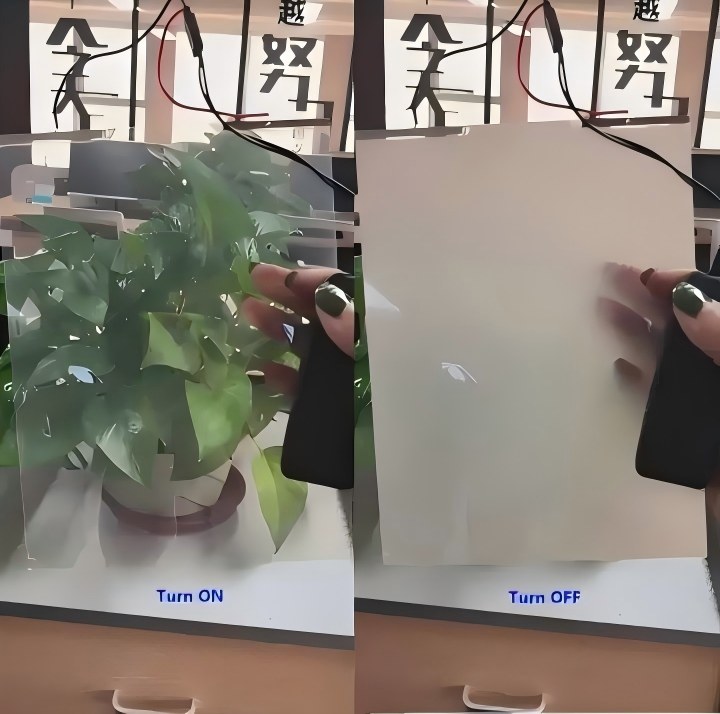

Smart glass film, often referred to as PDLC (polymer dispersed liquid crystal) films, instantly change their state from opaque (private) to transparent (transparent) by using a simple electric charge. It is essentially a dynamic electronic blind embedded in the film.
What is the process for smart film installation?
|
1. Prepare the tools; |
|
2. Clean the glass surface; |
|
3. Measure the glass dimensions and cut the film accurately; |
|
4. Peel off the protective liner and align the film with the glass edges; |
|
5. Use a squeegee to remove air bubbles completely from the middle to edge; |
|
6. Electrode connection; |
|
7. Edge sealing with silicon glass glue; |
|
8. Important notes: Install in a clean, dust-free environment; Do not touch the adhesive side with bare hands; Avoid bending or folding the film’s electrode; If the film is damaged during installation, stop using it immediately and contact our technical support. |

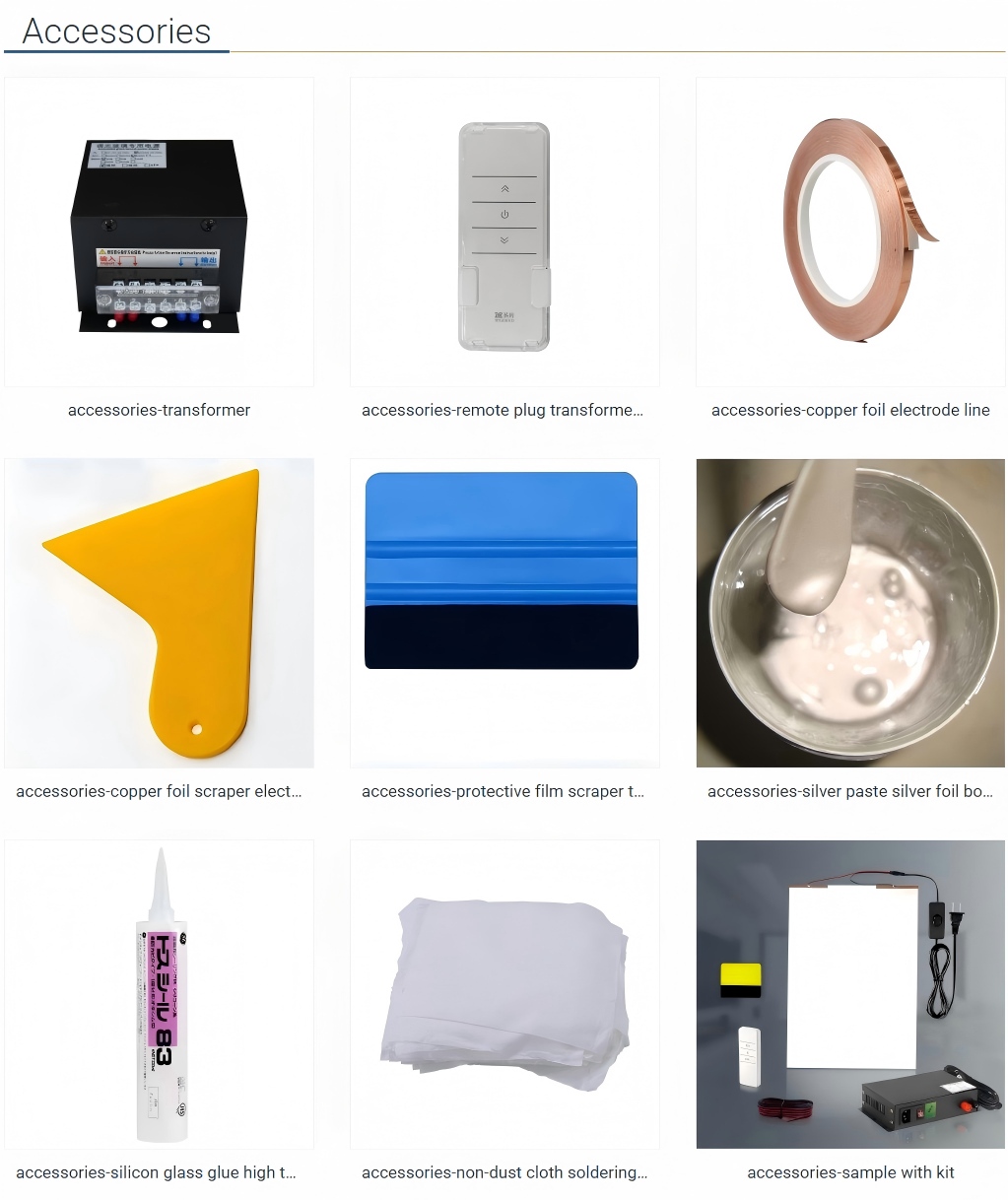

What tools are required for the installation?
Design Your Modern Interior Today
Don't settle for ready-made solutions. Embrace personalization and ultimate dynamic space management. Our custom smart film smart glass is a wise choice for any project that requires flexibility, style, and long-term use.
Ready to personalize your space? Contact us today and discuss your custom dimensions and design requirements!
Sunlight is a professional manufacturer and direct factory specialized in smart film, smart glass and LED display productions, we look forward to collaborating with you to bring smart and solutions with high-quality products to more markets and projects.....[ our company profile click here ]
