Premium Smart Solutions
Explore the future of dynamic glass with our premium switchable film. Designed for both home windows and office partitions, this innovative solution offers instant privacy control at your fingertips. Our films seamlessly integrate into any environment, allowing you to switch between transparent and opaque states via remote/app control, meeting your privacy needs. It is the ultimate intelligent upgrade for modern living and working spaces, replacing outdated curtains and blinds with a stylish and high-tech aesthetic.
The Technology of Instant Privacy

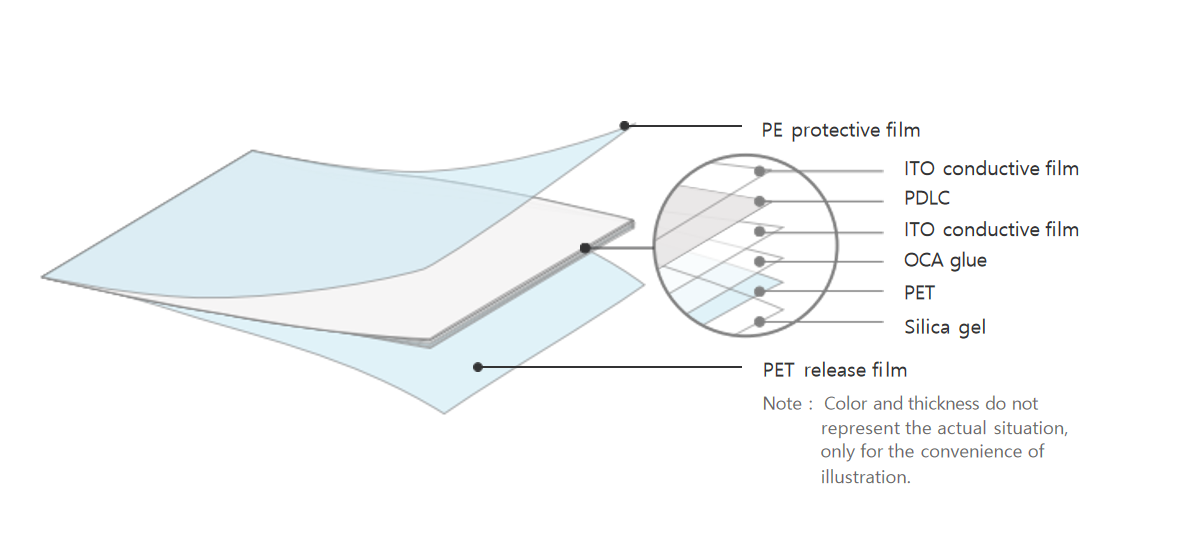

Our switchable film is based on superior Polymer Dispersed Liquid Crystal (PDLC) technology. This smart material allows for an instantaneous change between states:

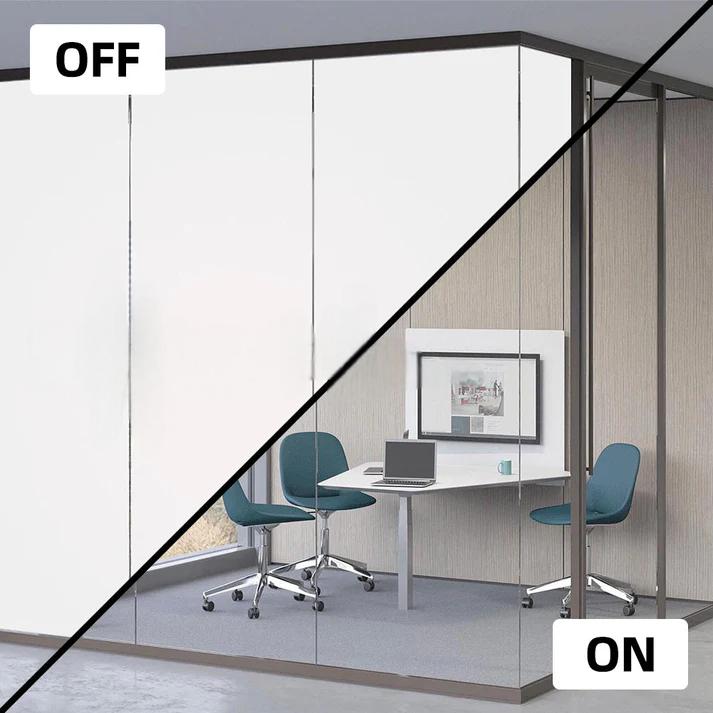

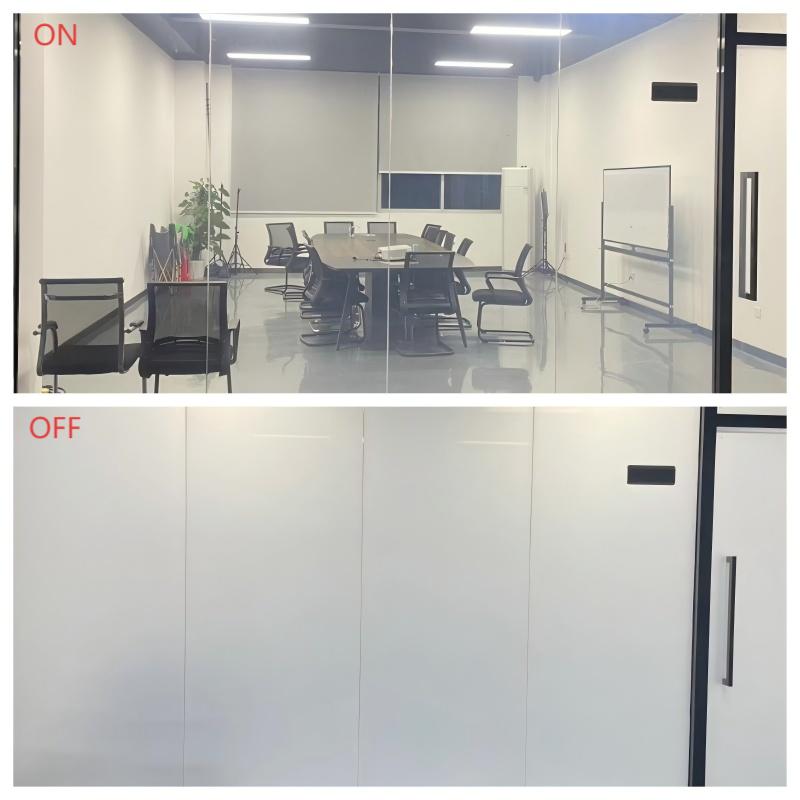

• Transparent (Clear): When a safe low voltage electrical current is applied, the liquid crystal aligns, allowing light to pass through for a clear view.

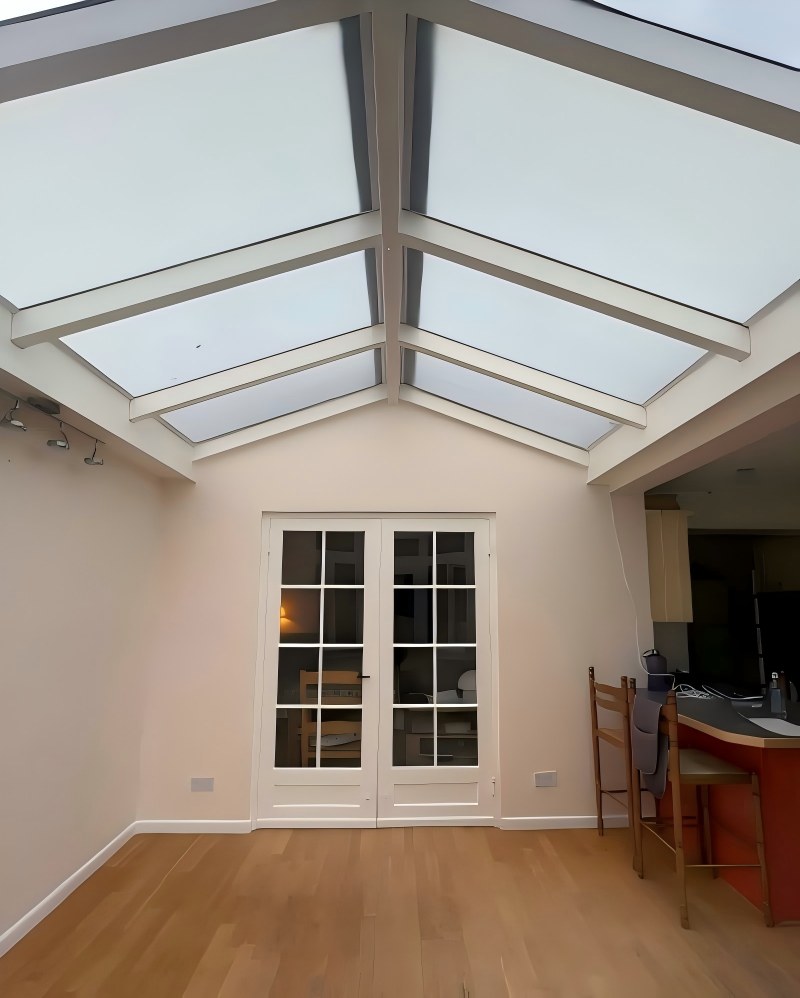

• Opaque (Private): When the power is turned off, the crystals scatter light, forming a frosted, opaque barrier, ensuring complete visual privacy.
Our switchable window film is an excellent choice for dynamic environments because of its rapid, reliable and silent operation.
Versatile Applications: Home & Office Smart Solutions

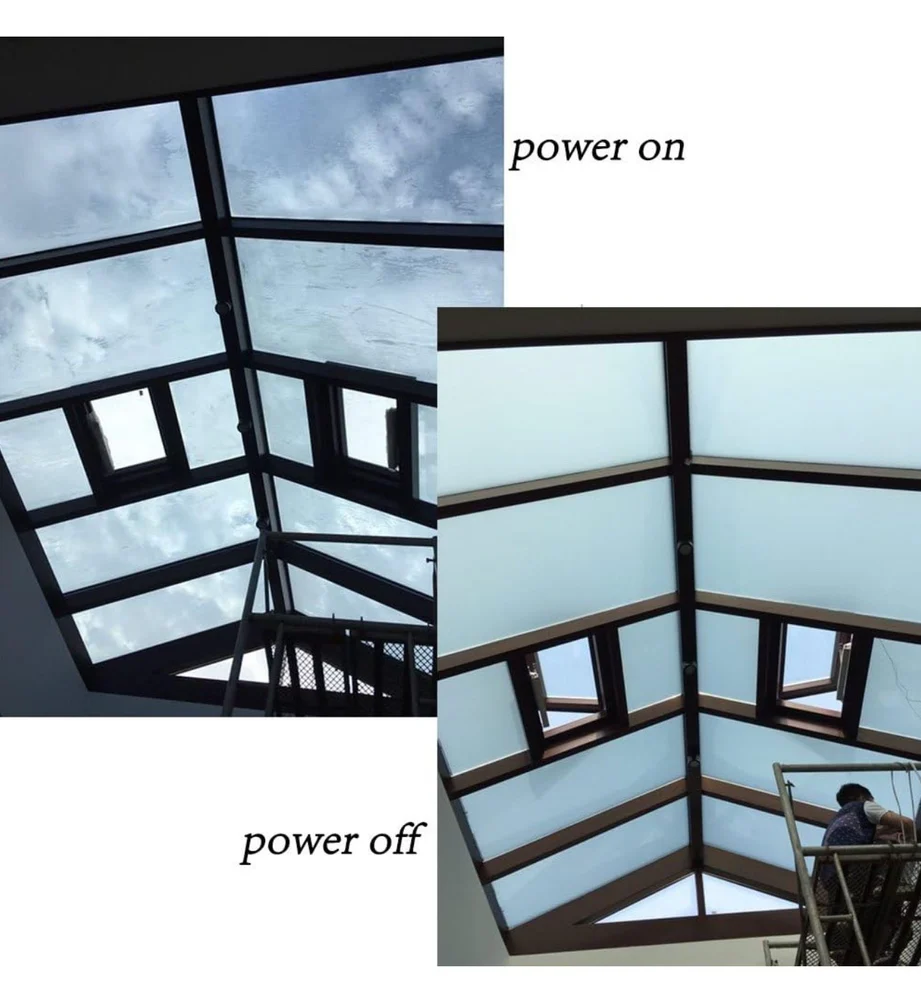

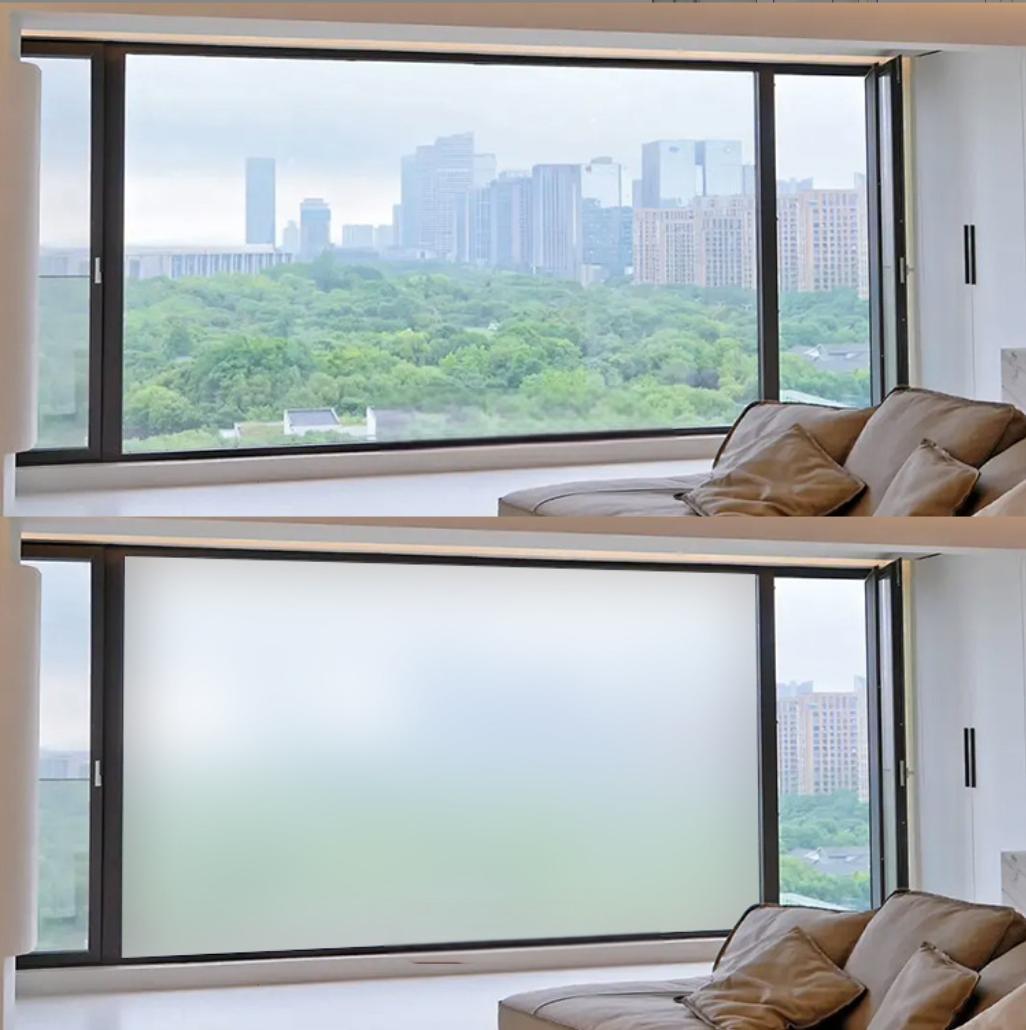

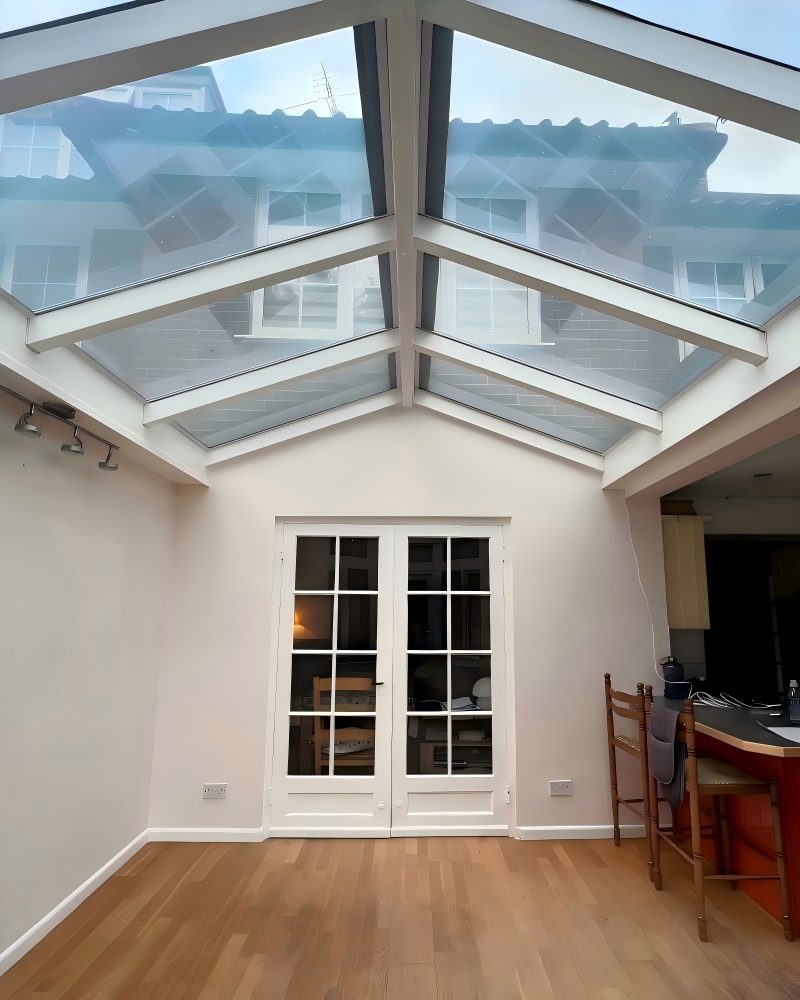

Our switchable window film is designed for versatility, providing tailored smart solutions across a full range of scenarios, such as home windows, skylights, bathroom glass, office partitions, conference rooms.

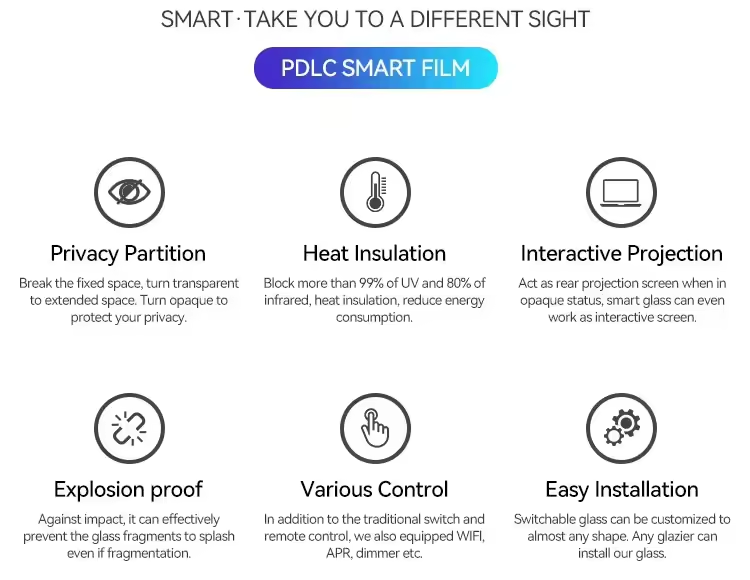

Key Benefits & Technical Highlights
Choosing our premium switchable window film means investing in superior performance and long-term value.
• Energy Efficiency: blocks over 99% of UV rays and up to 60% of infrared heat, leading to reduced cooling costs.
• Instant Control: switches in less than 0.1 seconds, providing immediate privacy.
• Safety & Security: adds a layer of shatter resistance to the glass.
• Low Power Consumption: operates on minimal power (<5 W/m²).
• Easy Installation: self-adhesive film can be applied to existing glass surfaces.

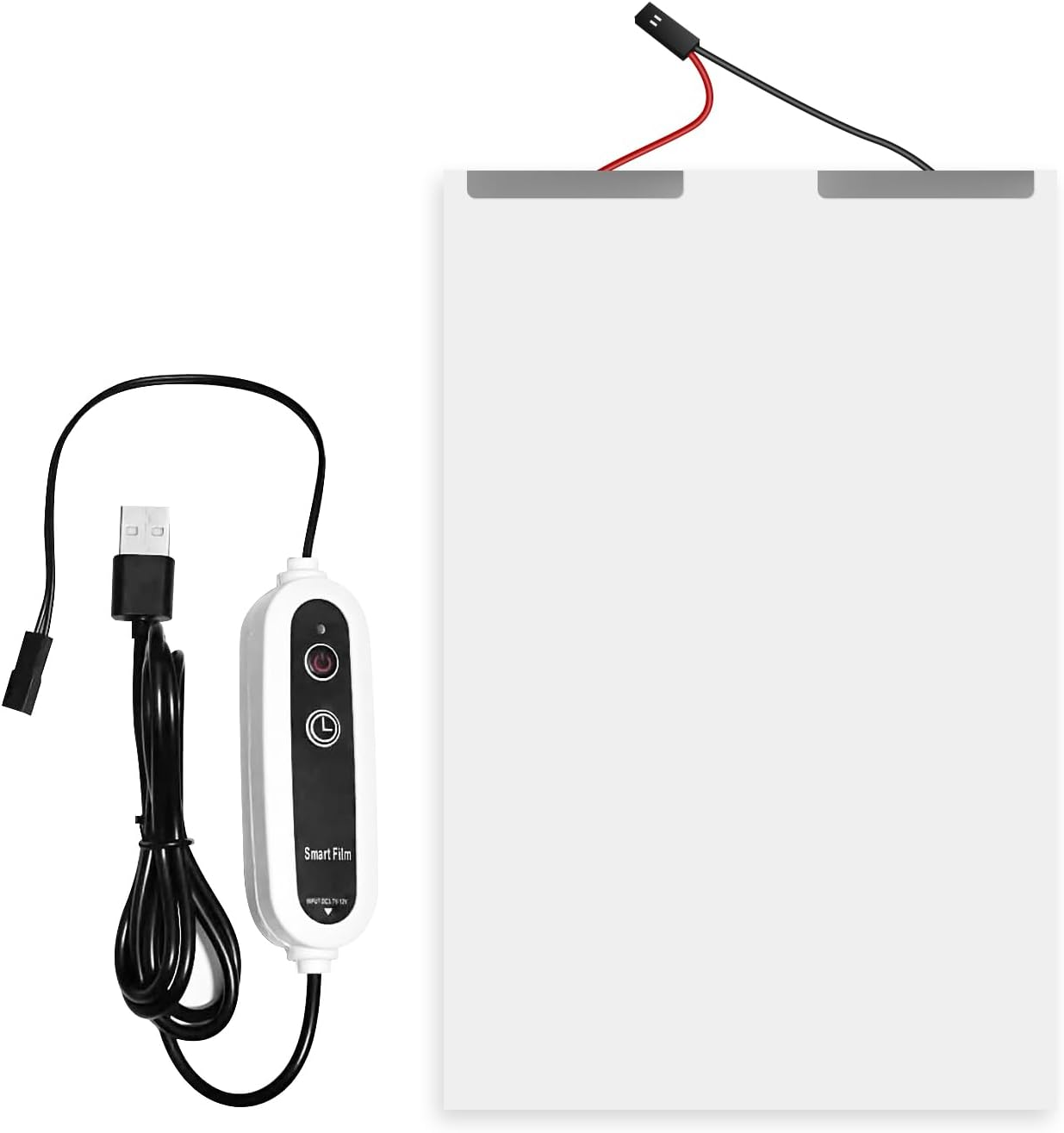

• Control Options: compatible with wall switches, remote controls, and smart home integration via app control.
|
Sunlight Switchable Film Size |
|||
|
Adhesive switchable pdlc film |
Thickness |
|
0.47mm |
|
Width |
Cut to Sheet |
100-1800mm |
|
|
Cut to Roll |
1000,1200,1500,1800mm |
||
|
Length |
Cut to Sheet |
100-50000mm |
|
|
Cut to Roll |
30 / 50meters |
||
|
Inner Diameter |
Roll Tube |
6 inches |
|
|
Laminated switchable pdlc film |
Thickness |
|
0.38mm |
|
Width |
Cut to Sheet |
100-2100mm |
|
|
Cut to Roll |
1000,1200,1400,1500,1800,2000,2100mm |
||
|
Length |
Cut to Sheet |
100-50000mm |
|
|
Cut to Roll |
30 / 50meters |
||
|
Inner Diameter |
Roll Tube |
6 inches |
|
|
|
|||
|

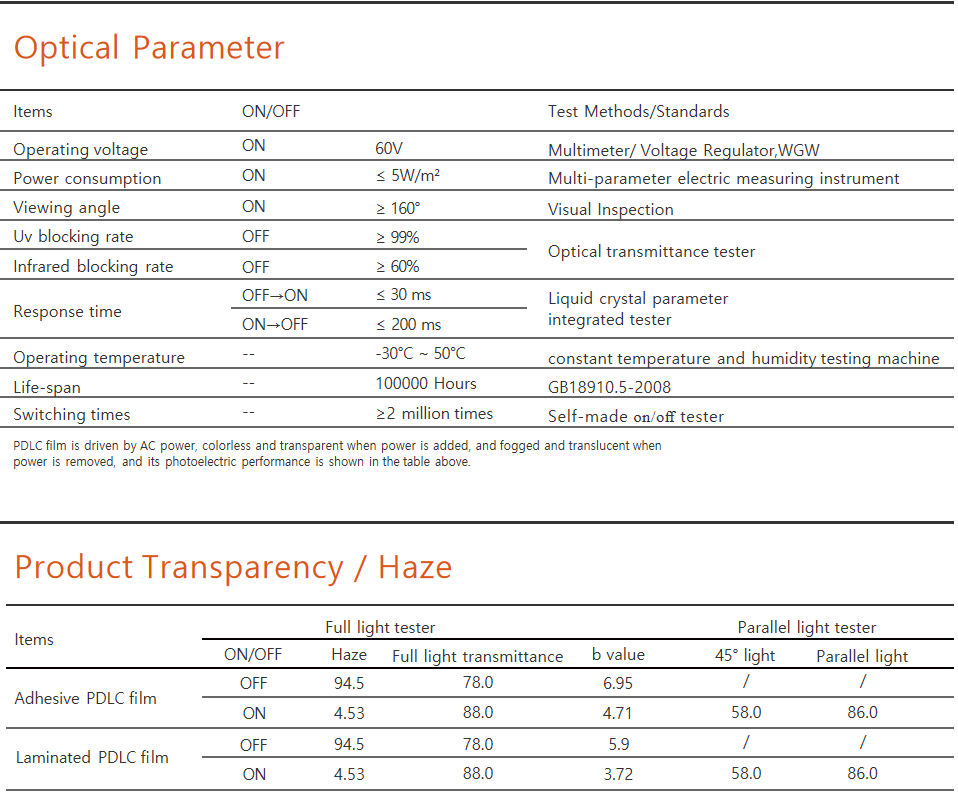

Sunlight Switchable Film Optical Parameter |
|||
|
Items |
States |
|
Test Methods/Standards |
|
Operating voltage |
ON |
60V |
Multimeter/ Voltage Regulator,WGW |
|
Power consumption |
ON |
≤ 5W/m² |
Multi-parameter electric measuring instrument |
|
Viewing angle |
ON |
≥ 160° |
Visual Inspection |
|
UV blocking rate |
OFF |
≥ 99% |
Optical transmittance tester |
|
Infrared blocking rate |
OFF |
≥ 60% |
|
|
Response time |
OFF→ON |
≤ 30 ms |
Liquid crystal parameter integrated tester |
|
ON→OFF |
≤ 200 ms |
||
|
Operating temperature |
|
-30°C ~ 50°C |
constant temperature and humidity |
|
Life-span |
|
100,000 hours |
GB18910.5-2008 |
|
Switching times |
|
≥2,000,000 times |
Self-made on/off tester |
|
Sunlight Switchable Film Transparency / Haze |
||||||
|
Items |
Full light tester |
Parallel light tester |
||||
|
No.1 84% VLT |
ON/OFF |
Haze |
Full light transmittance |
b value |
45° light |
Parallel light |
|
Adhesive switchable glass film |
OFF |
94.5 |
78.0 |
6.62 |
/ |
/ |
|
ON |
4.53 |
84.0 |
4.56 |
58.0 |
82.0 |
|
|
Laminated switchable glass film |
OFF |
94.5 |
78.0 |
5.64 |
/ |
/ |
|
ON |
4.53 |
84.0 |
3.55 |
58.0 |
81.0 |
|
|
|
|
|
|
|
|
|
|
No.2 89% VLT |
ON/OFF |
Haze |
Full light transmittance |
b value |
45° light |
Parallel light |
|
Adhesive switchable smart film |
OFF |
94.5 |
78.0 |
6.95 |
/ |
/ |
|
ON |
4.53 |
89.0 |
4.71 |
58.0 |
86.0 |
|
|
Laminated switchable smart film |
OFF |
94.5 |
78.0 |
5.90 |
/ |
/ |
|
ON |
4.53 |
89.0 |
3.72 |
58.0 |
86.0 |
|
|
|
|
|
|
|
|
|
|
No.3 91% VLT |
ON/OFF |
Haze |
Full light transmittance |
b value |
45° light |
Parallel light |
|
Adhesive window smart film |
OFF |
94.5 |
85.0 |
7.57 |
/ |
/ |
|
ON |
3.00 |
91.0 |
5.29 |
60.0 |
88.0 |
|
|
Laminated window smart film |
OFF |
94.5 |
85.0 |
6.79 |
/ |
/ |
|
ON |
3.00 |
91.0 |
4.31 |
60.0 |
88.0 |
|
Upgrade Your Space Today!
Stop compromising between natural light and privacy. Our switchable privacy film provides the final smart solution for your glass surfaces, whether it's a essential office partition or a large home window. Experience the elegance of instant, on-demand privacy and the savings of superior energy control.

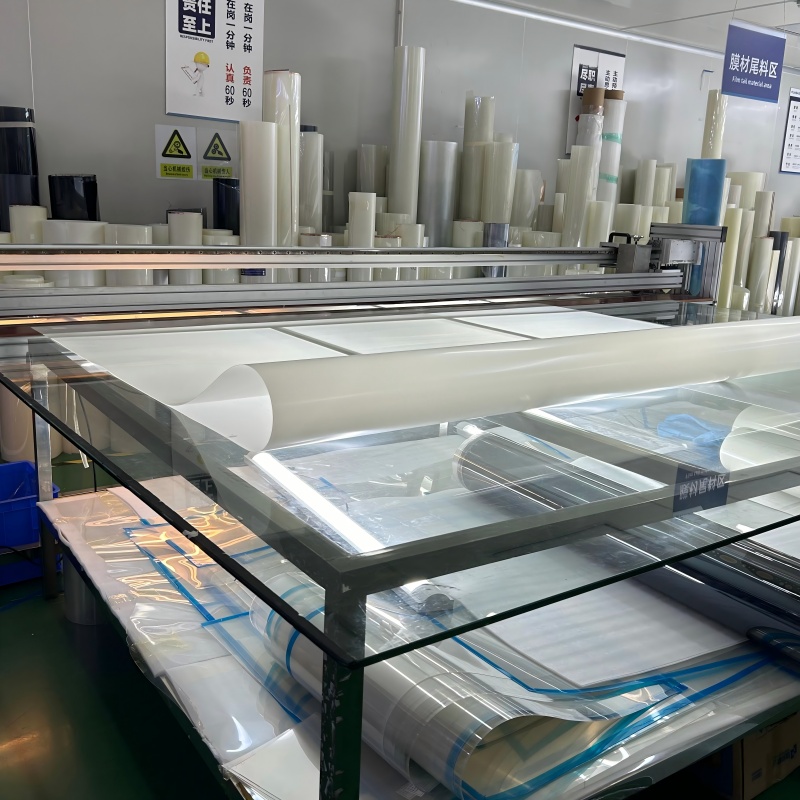

Sunlight is a professional manufacturer and direct factory specialized in smart film, smart glass and LED display productions, we look forward to collaborating with you to bring smart and solutions with high-quality products to more markets and projects.....[ our company profile click here ]
