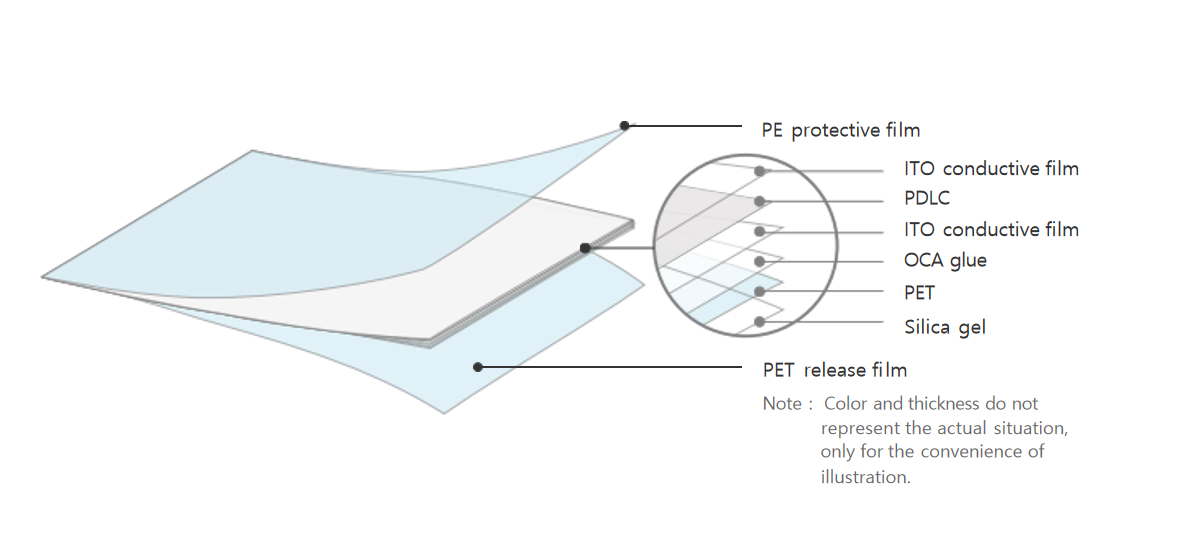

The operating principle of our PDLC film is simple yet revolutionary. This film contains liquid crystals that can be immediately aligned or dispersed under low-voltage current.

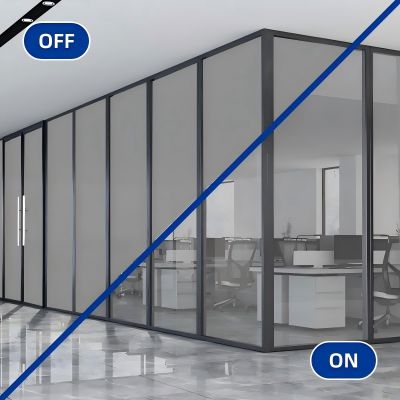

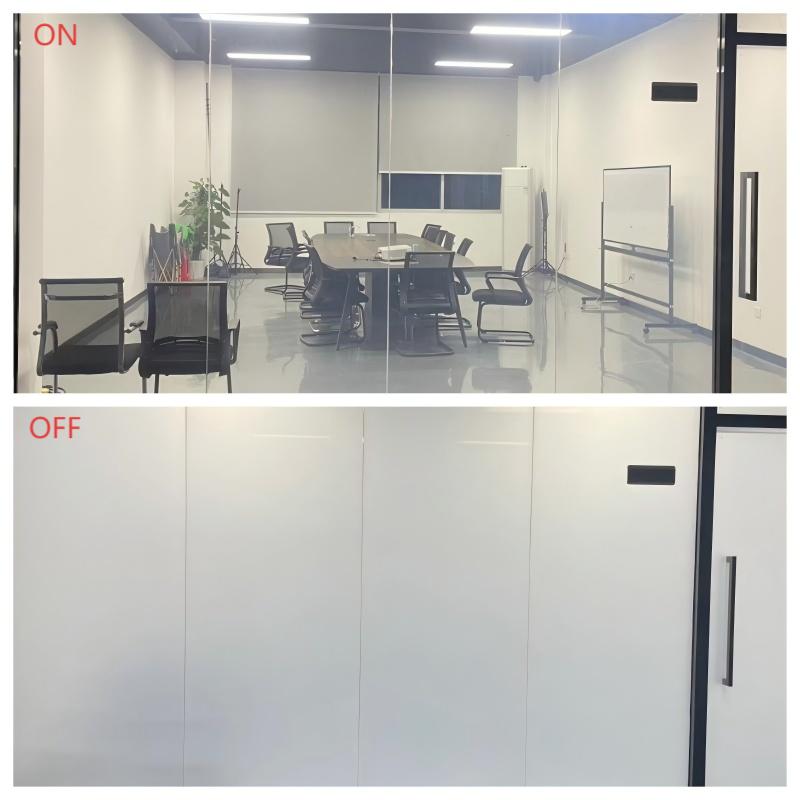

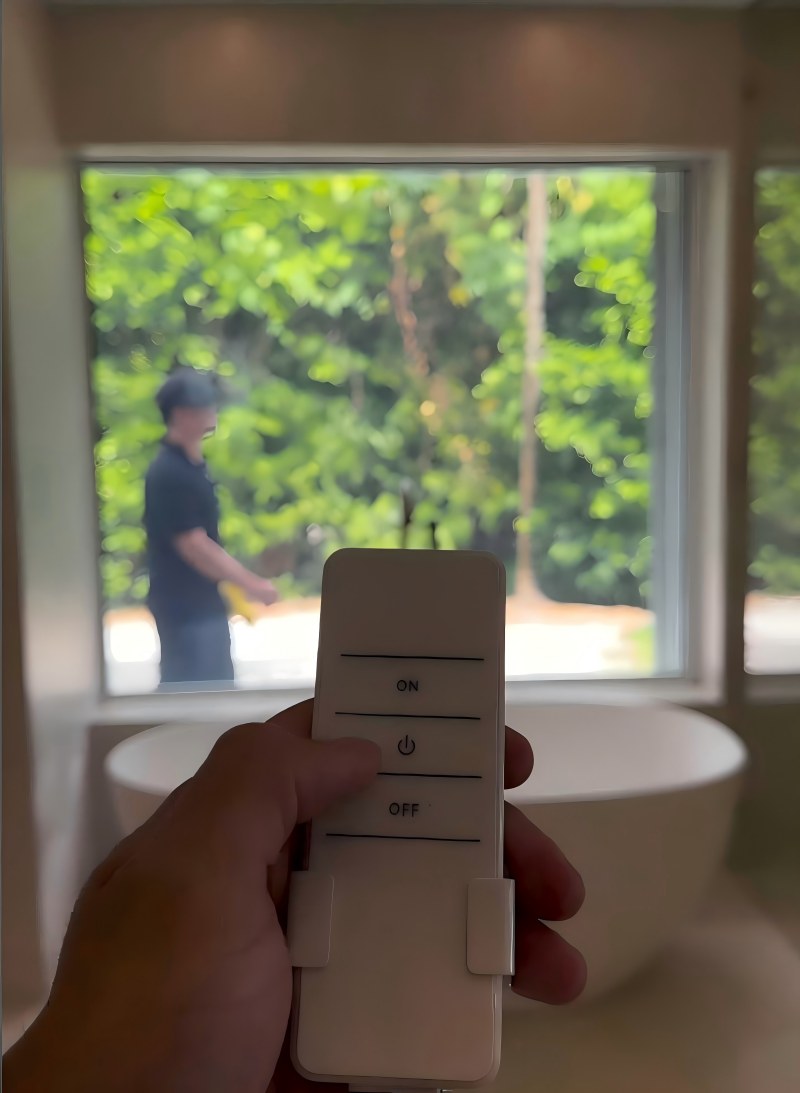

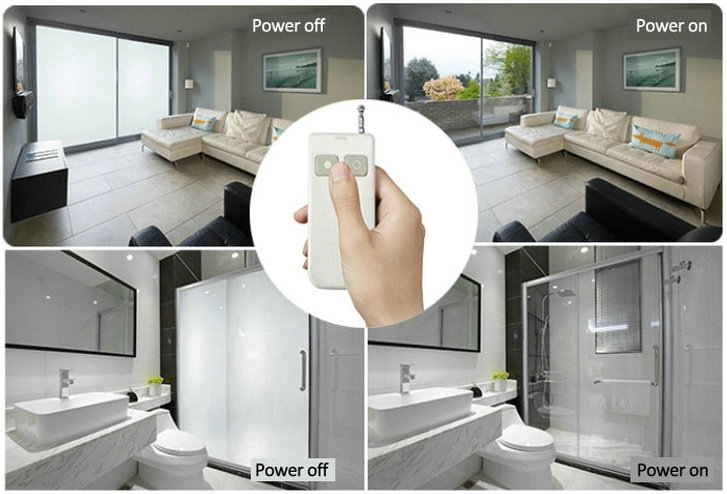

• Open ON state (clear): Crystal arrangement, allowing for maximum light transmission and a clear field of vision.

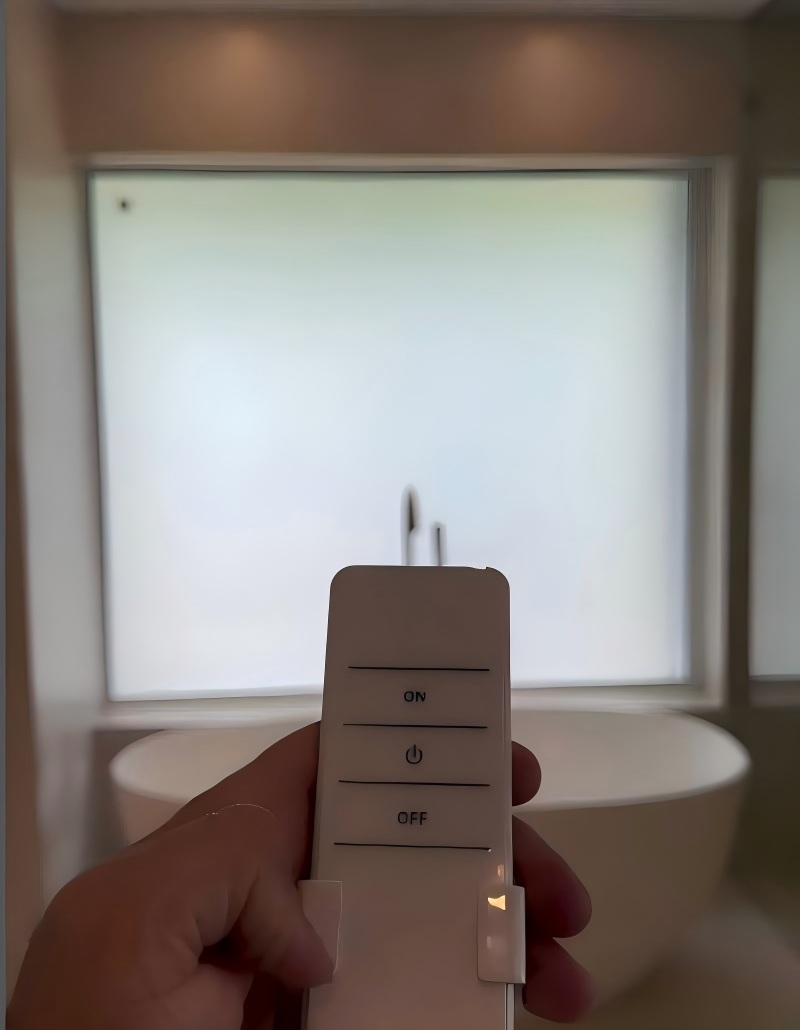

• Closed OFF state (opaque): The crystal scatters light, creating a frosted private barrier while still allowing soft natural light to pass through.
This reliable, silent and quick-switching function is at the core of the smart features we bring to your glasses.
Financial and Functional Advantages
Investing in our PDLC film is a wise financial decision that can immediately offer functional improvements.
• Save on bills: Superior thermal performance reduces reliance on HVAC systems, directly improving energy efficiency and lowering utility costs.
• Block ultraviolet rays: Block over 99% of harmful ultraviolet radiation, protect the interior from fading and reduce health risks.
• Easy to apply: The self-adhesive backing makes the film easy to apply to existing glass, minimizing installation time and cost.
• Low power consumption: Operates at minimum power consumption (<5 W/m²) to ensure continuous "smart energy conservation".
• Enhance security: An additional anti-breakage layer has been added to the glass.
Dual-Purpose: Residential & Commercial Spaces
Our high-quality PDLC film is the ideal solution for any space that requires flexible privacy and light management.
1. Residential: Bathroom, kitchen, sunroom - Instant privacy without sacrificing natural light; furniture with UV protection.
2. Commercial: Conference room, administrative office - On-demand discretion for confidential meetings; modern, flexible office design.
3. Healthcare: Ward, examination room - A substitute for curtain hygiene; to control visibility for the dignity of the patients.
4. Hospitality: Hotel windows, restaurant partitions - Create a luxurious and high-tech guest experience; dynamic space separation.
5. Specialty: Projection screen, display cabinet - Dual-purpose functionality: privacy and high-definition rear projection.
PDLC smart film technical specifications
|
Sunlight PDLC Film Size |
|||
|
Adhesive PDLC smart film |
Thickness |
|
0.47mm |
|
Width |
Cut to Sheet |
100-1800mm |
|
|
Cut to Roll |
1000,1200,1500,1800mm |
||
|
Length |
Cut to Sheet |
100-50000mm |
|
|
Cut to Roll |
30 / 50meters |
||
|
Inner Diameter |
Roll Tube |
6 inches |
|
|
Laminated PDLC smart film |
Thickness |
|
0.38mm |
|
Width |
Cut to Sheet |
100-2100mm |
|
|
Cut to Roll |
1000,1200,1400,1500,1800,2000,2100mm |
||
|
Length |
Cut to Sheet |
100-50000mm |
|
|
Cut to Roll |
30 / 50meters |
||
|
Inner Diameter |
Roll Tube |
6 inches |
|
|
|
|||
|

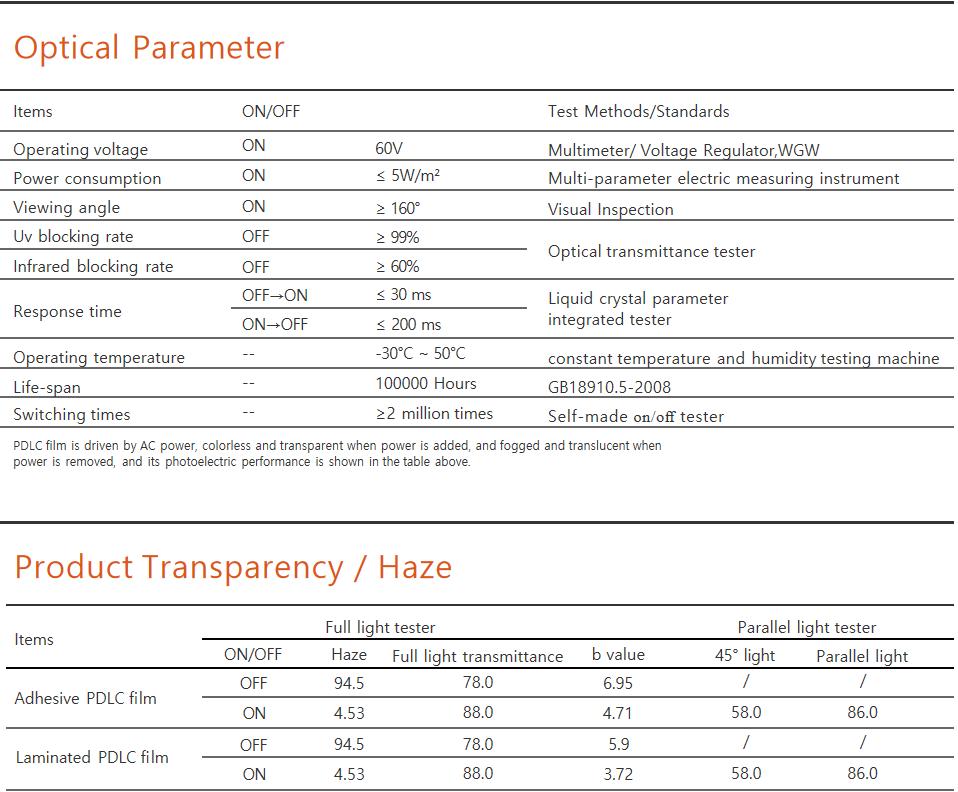

Sunlight PDLC Film Optical Parameter |
|||
|
Items |
States |
|
Test Methods/Standards |
|
Operating voltage |
ON |
60V |
Multimeter/ Voltage Regulator,WGW |
|
Power consumption |
ON |
≤ 5W/m² |
Multi-parameter electric measuring instrument |
|
Viewing angle |
ON |
≥ 160° |
Visual Inspection |
|
UV blocking rate |
OFF |
≥ 99% |
Optical transmittance tester |
|
Infrared blocking rate |
OFF |
≥ 60% |
|
|
Response time |
OFF→ON |
≤ 30 ms |
Liquid crystal parameter integrated tester |
|
ON→OFF |
≤ 200 ms |
||
|
Operating temperature |
|
-30°C ~ 50°C |
constant temperature and humidity |
|
Life-span |
|
100,000 hours |
GB18910.5-2008 |
|
Switching times |
|
≥2,000,000 times |
Self-made on/off tester |
Please refer to this for the installation method of the PDLC switchable smart film.
DOWNLOAD
PDLC Film Installation Guide Step by Step Instructions
Upgrade to Top Quality PDLC Folie Today
Stop losing money and comfort due to inefficient glass. Our top quality PDLC folie provides a perfect combination of smart functionality and energy efficiency for your residential & commercial uses. This is the easiest way to add instant privacy and start seeing smart savings on your bills.
Ready to add smart functionality to your glass?Contact us
immediately to learn more about how our PDLC folie can transform your space and save on bills!
